- PCIe 2.0 Gen 1 Compliant. x1 Link, Dual Simplex, 2.5Gbps in Each Direction Expansion Bus Interface Up to 25 Mbps Serial Data Rate.
- 16 Multi-Purpose Inputs/Outputs. 16-bit General Purpose Timer/Counter. Sleep Mode with Wake-up Indicator
- Operating Temperature Range: -40C to 85C

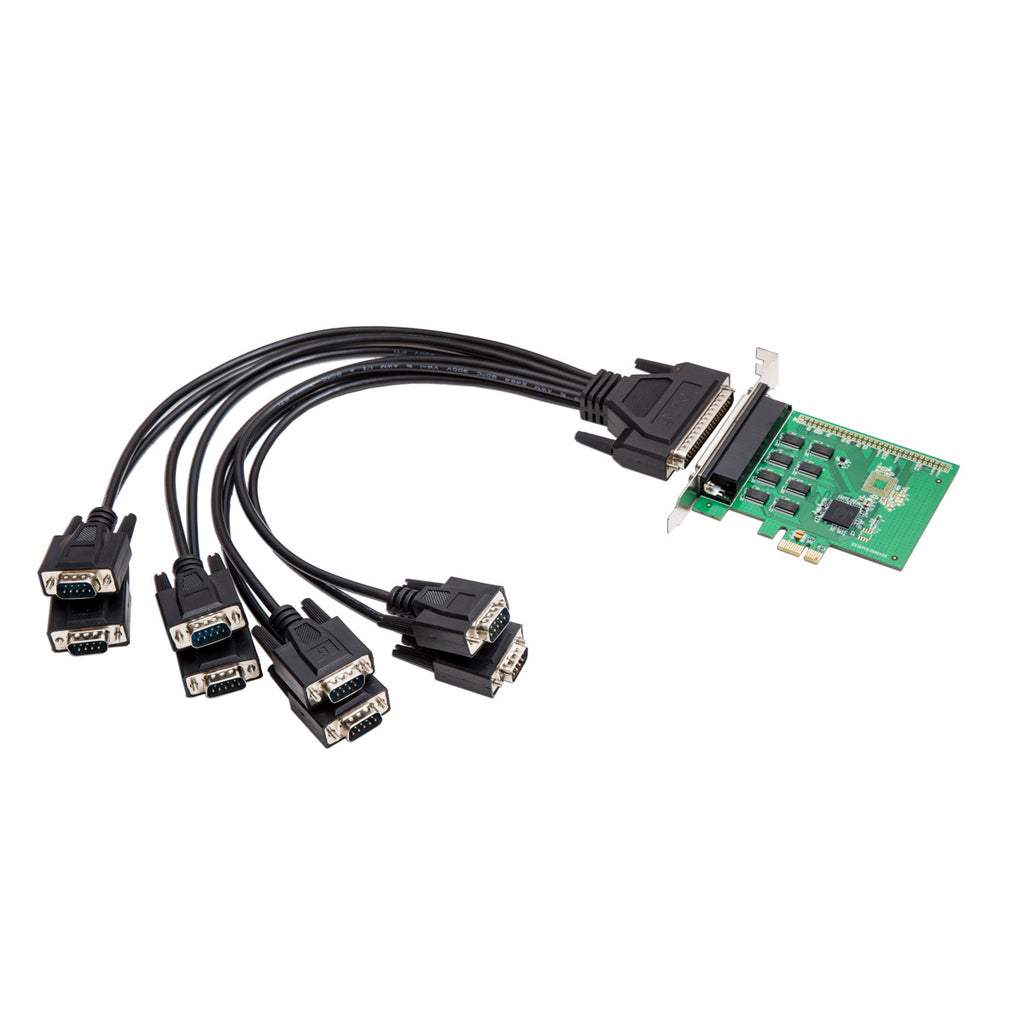

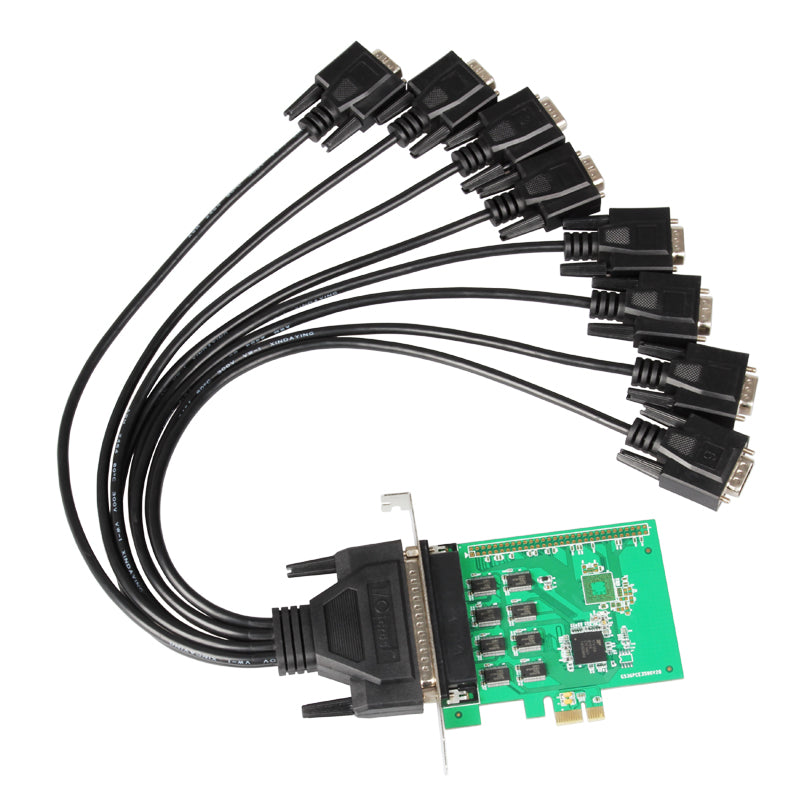

- 8x Serial (8S) Model: Supports 8 Independent 9-pin RS232 Serial Ports
- 256-byte TX and RX FIFOs. Programmable TX and RX Trigger Levels. TX/RX FIFO Level Counters. Fractional Baud Rate Generator. Automatic RTS/CTS or DTR/DSR Hardware Flow Control with Programmable Hysteresis. Automatic Xon/Xoff Software Flow Control. Multi-dr

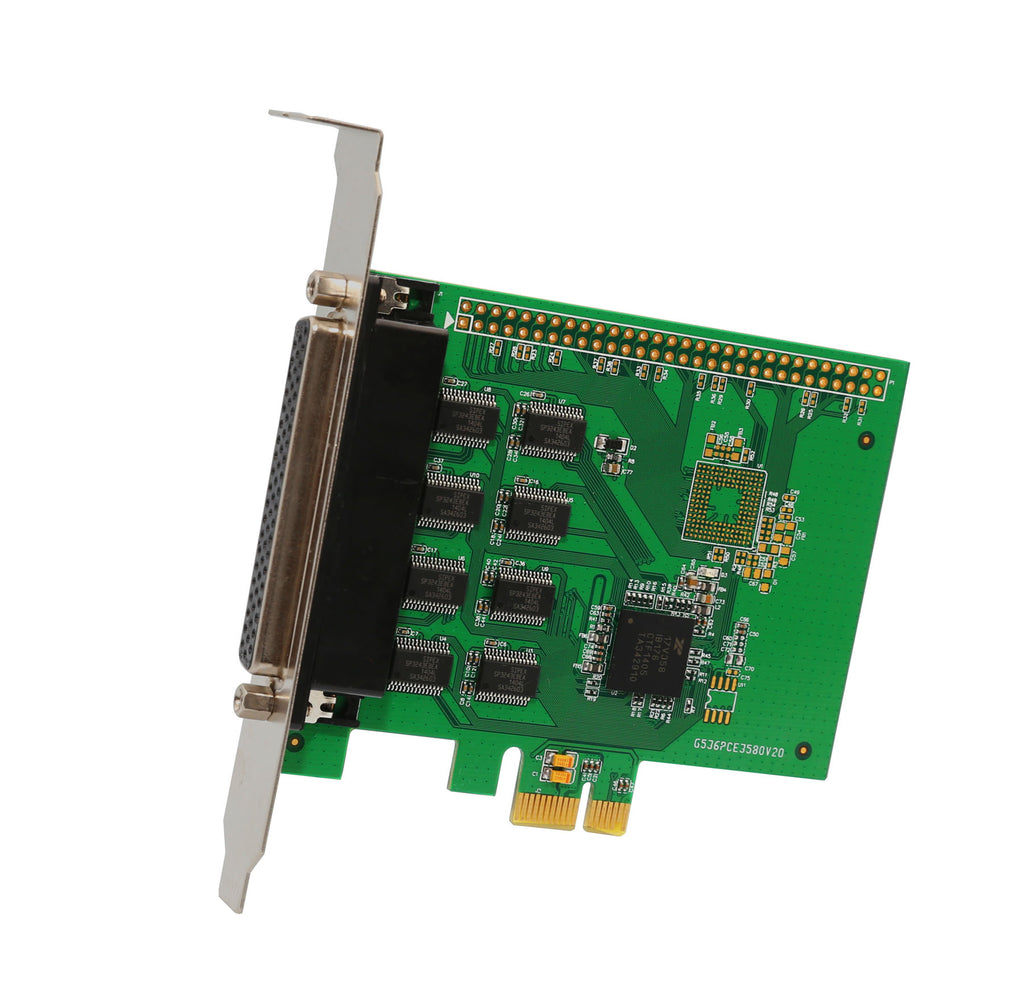

The XR17V358 series Multi-I/O PCI-Express controller cards are the high performance RS232 serial interface controller for home and industrial users. They are compatible with industrial standard 16C550 UART, which provide a low cost connection platform for industrial machines, POS machines, external Modems, mice, etc.
