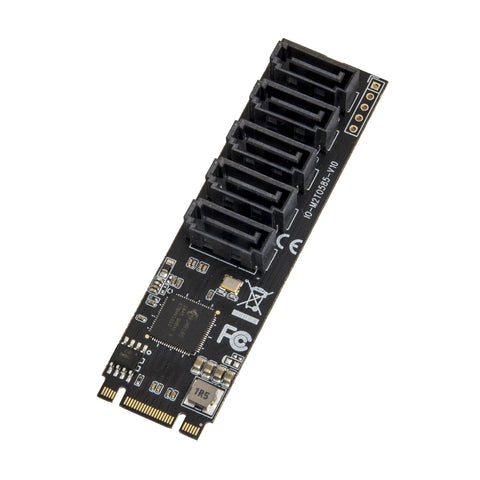

5 Port Non-RAID SATA III to M.2 B+M Key Adapter PCI-e 3.0 x2 bandwith
5 Port Non-RAID SATA III to M.2 B+M Key Adapter PCI-e 3.0 x2 bandwith
5 Port Non-RAID SATA III to M.2 B+M Key Adapter PCI-e 3.0 x2 bandwith
5 Port Non-RAID SATA III to M.2 B+M Key Adapter PCI-e 3.0 x2 bandwith
5 Port Non-RAID SATA III to M.2 B+M Key Adapter PCI-e 3.0 x2 bandwith
5 Port Non-RAID SATA III to M.2 B+M Key Adapter PCI-e 3.0 x2 bandwith
5 Port Non-RAID SATA III to M.2 B+M Key Adapter PCI-e 3.0 x2 bandwith
5 Port Non-RAID SATA III to M.2 B+M Key Adapter PCI-e 3.0 x2 bandwith
5 Port Non-RAID SATA III to M.2 B+M Key Adapter PCI-e 3.0 x2 bandwith
5 Port Non-RAID SATA III to M.2 B+M Key Adapter PCI-e 3.0 x2 bandwith

5 Port Non-RAID SATA III to M.2 B+M Key Adapter PCI-e 3.0 x2 bandwith

  • Sale
  • $46.79
Shipping calculated at checkout.
  • Connect five SATA drives to a M.2 B+M Key Connection, providing up to 1700 MB/s speed.
  • Plug and play supported, no additional software installation or setting required.
  • Can support Port Multiplier that is not in a RAID configuration. Compatible with SATA hard drives & solid state drives and computer systems with SATA controllers.
  • 2-Lane M.2 PCI-Express 3.0 interface (B & M Key). Complies with PCI Express Base Specification Revision 3.1a.
  • This card is only design for storage use only, can not boot any OS / System drives. Backed by Syba 3 Year Hassle-free Warranty and Lifetime Customer Service.

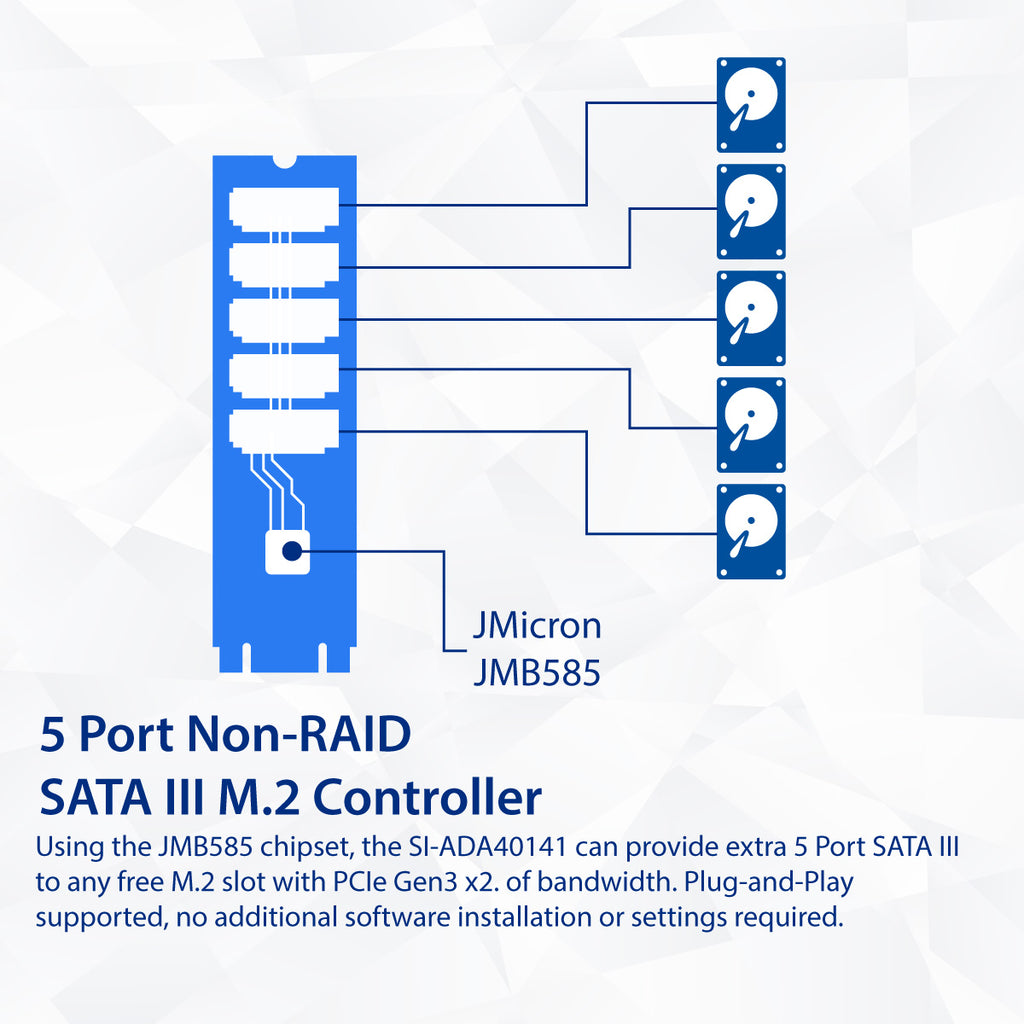

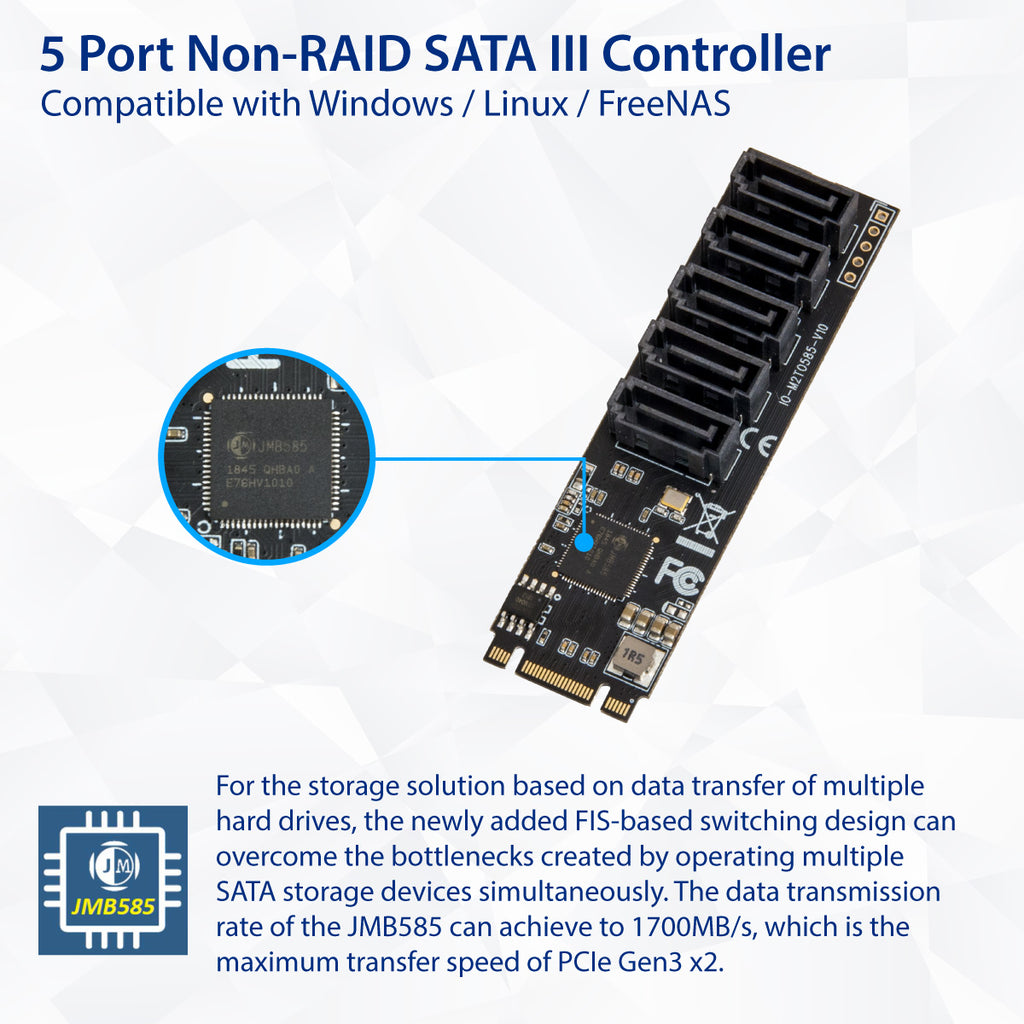

Using the JMB585 chipset, the SI-ADA40141 can provide M.2 (PCIe Gen3 x2 bandwidth) to 5 Port SATA 6Gb / s card solution. For the storage solution based on data transfer of multiple hard drives, the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2.
