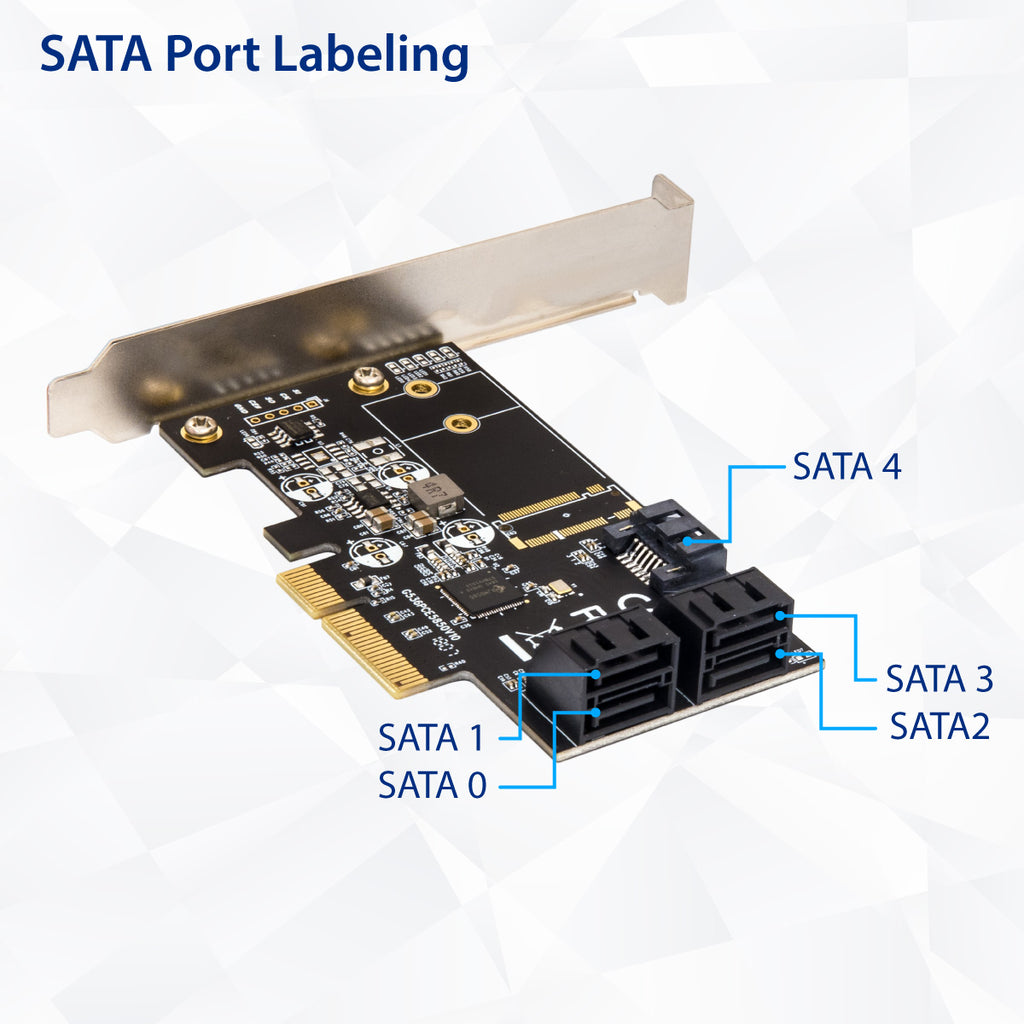

- Connect five SATA drives to any free PCI-e x4 slot, providing up to 1700 MB/s speed.
- Plug and play supported, no additional software installation or setting required.
- Can support Port Multiplier that is not in a RAID configuration.
- Complies with PCI Express Base Specification Revision 3.1a. Compatible with SATA hard drives & solid state drives and computer systems with SATA controllers.
- This card is only design for storage use only, can not boot any OS / System drives. Backed by Syba 3 Year Hassle-free Warranty and Lifetime Customer Service. Important Note: Only work with PCI-E slot, Not for PCI Slot.

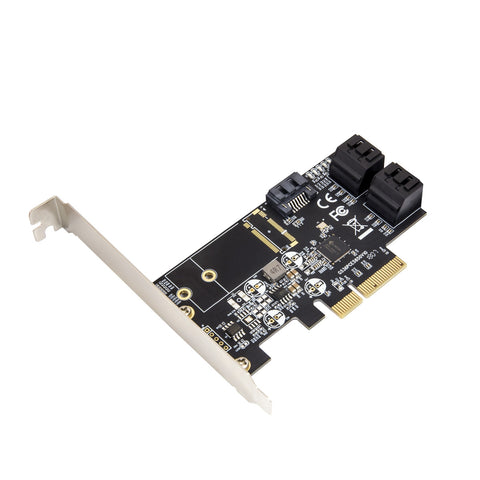

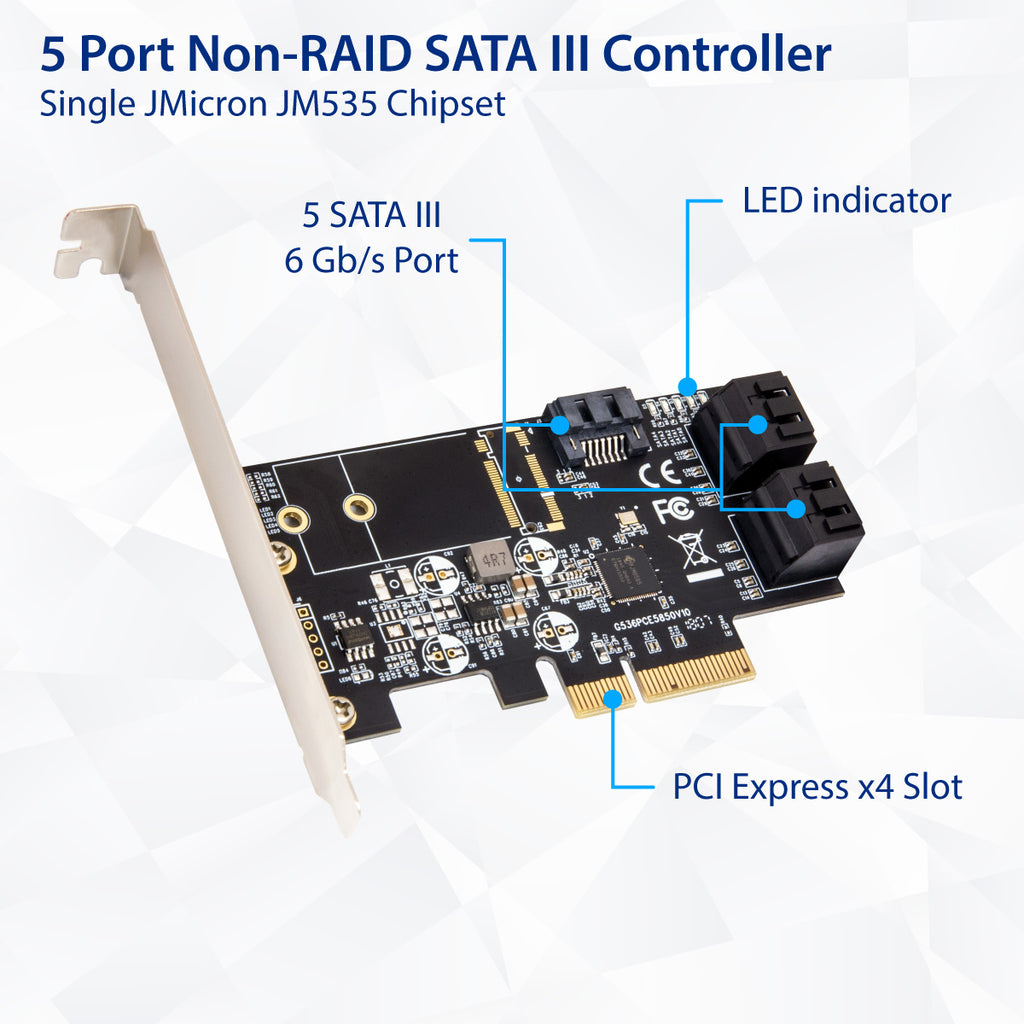

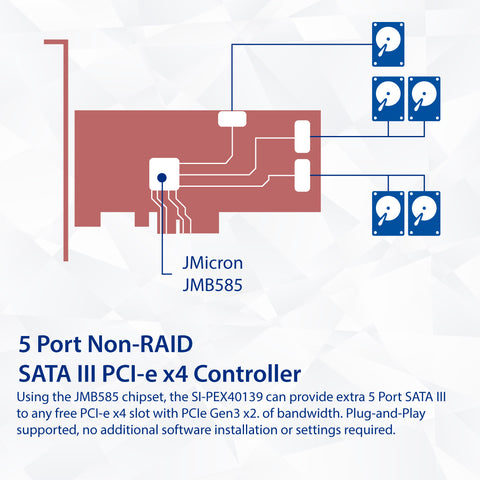

Using the JMB585 chipset, the SI-PEX40139 can provide extra 5 Port SATA III to any free PCI-e x4 slot with PCIe Gen3 x2 bandwidth. For the storage solution based on data transfer of multiple hard drives, the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2.
