- Compatible with PCI express Base Specification Revision 3.1a
- Compliant with Serial ATA AHCI (advanced host controller interface) Specification Rev 1.0, Supports SATA 3.0 transfer rate up to 6Gbps. Maxium Sequencial Read / Write Speed 850 MB/s.

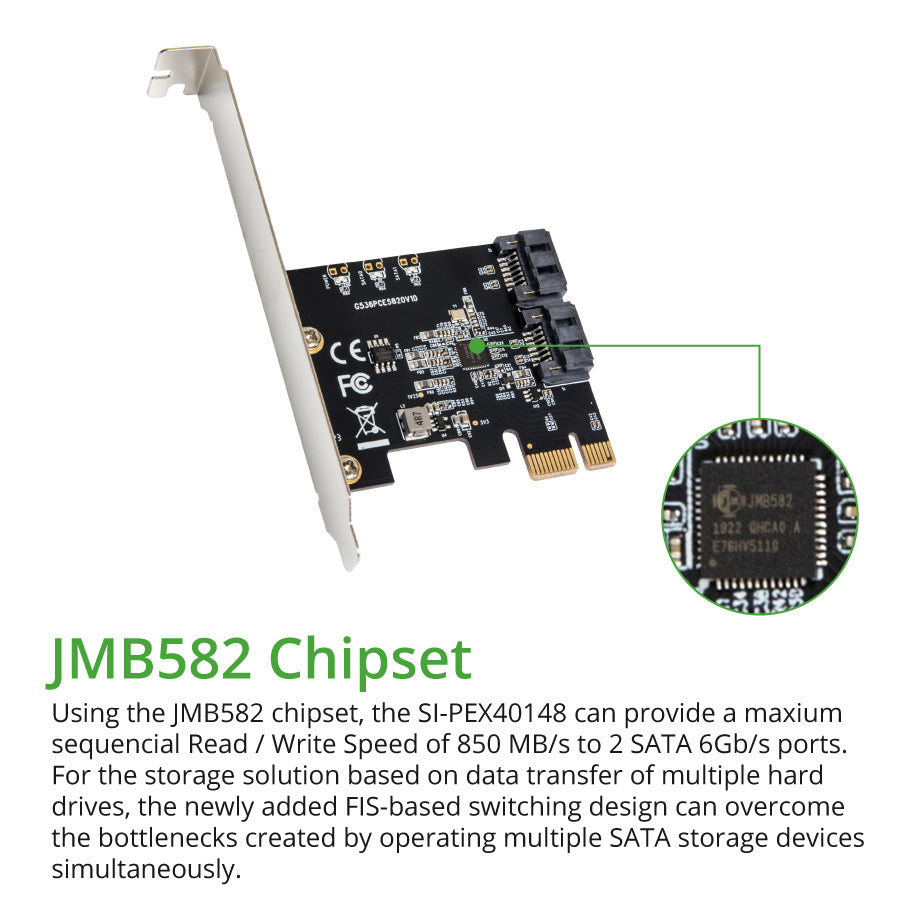

- Jmicron JMB582 Chipset, Port Multiplier FIS-based and Command-based switching supported.Hot plug and Hot swap SATA ports. Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
- Compatible with Windows XP/7/8/10/MAC/NAS/Linux OS. No driver installation is required. Support install Windows OS from Win10 PE.

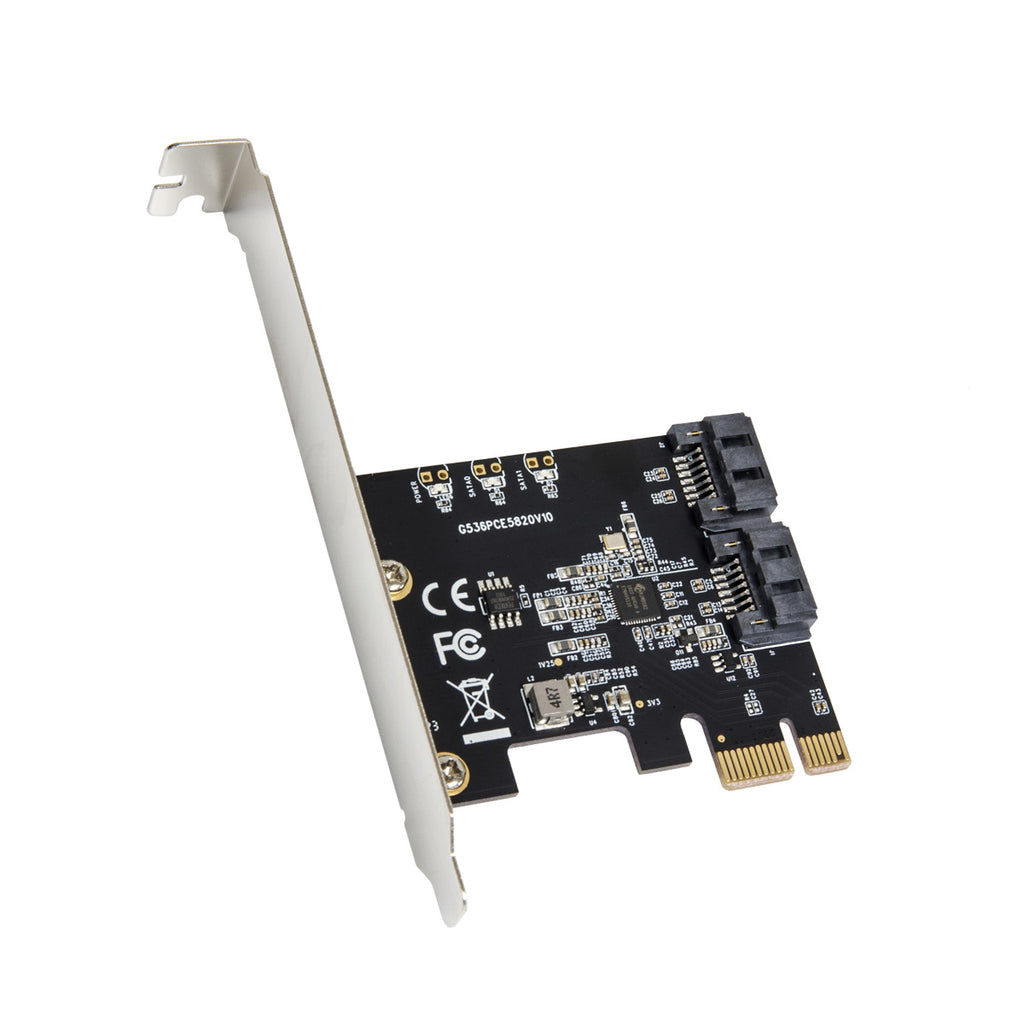

The IO Crest 2 Port SATA III PCI-e 3.0 x1 card ( SI-PEX40148 ) is the easiest way to update any computer with SATA ports with a PCI-e x1 slot or larger. Once installed?? this host card will add SATA ports with two independent channels. This allows support of two SATA devices at speeds of up to 6Gb/s whether it is a SATA hard drive or SATA device. Using the JMB582 chipset, the SI-PEX40148 can provide a maxium sequencial Read / Write Speed of 850 MB/s to 2 SATA 6Gb/s ports. For the storage solution based on data transfer of multiple hard drives, the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously.
